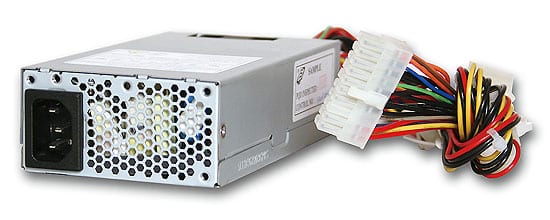

ORION-A1801P

180W Flex form factor power supply with active PFC

特點

  • 1U Flex form factor power supply
  • Full-range input with active PFC
  • Max. +5V output is 16A
  • Low noise

詳細規格

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 6A@115V, 3A@230V
Efficiency > 75%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 5.7 ~ 6.5V; +3.3V: 3.9 ~ 4.3V; +12V: 13.6 ~ 15V
Over Power/
Load Protection
Output power over 110% ~ 150%
MTBF >130,000 hrs
EMI & Safety Approval UL
Temperature/
Humidity
Operating: 0 ~ 40°C, 20 ~ 90%RH
Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension
(WxDxH)
81.5 x 150 x 40.5 mm; 3.2” x 5.9” x 1.6”

採購資訊

Ordering Guide
ORION-A1801P
180W PSU. Active PFC. Low Noise
