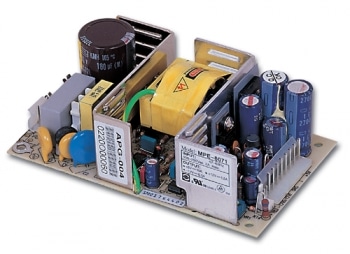

MPE-8071

70W universal input open-frame power supply

特點

  • 3″ x 5″ open frame power supply suitable for node chassis
  • Three rails outputs (+5V, +12V & -12V)
  • Universal AC input
  • Higher +5V output (10A)

詳細規格

Specifications
Input Voltage 90V ~ 132V, 180V ~ 264V AC Auto-range
Input Frequency 47 ~ 63 Hz
Input Current 2A@115V; 1A@230V
Efficiency > 70%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 5.6 ~ 6.6V; +3.3V: 3.6 ~ 4.2V; +12V: 13.2 ~ 14.6V
Over Power/
Load Protection
Output power over 110% ~ 160%
MTBF 130,000 hrs
EMI & Safety Approval UL, cUL, TUV, CE, FCC
Temperature/
Humidity
Operating: 0 ~ 50oC, 20 ~ 90%RH
Storage: -40 ~ 85oC, 5 ~ 95%RH
Dimension
(WxDxH)
76.2 x 127 x 38.6 mm; 3” x 5” x 1.5”

採購資訊

Ordering Guide
MPE-8071
70W universal input open frame power supply
