LYNX-6110

LYNX-6110 is a compact, fan-less and cable-less PC adopting by low power Intel® Apollo Lake processor. Developed to meet any heavy industrial standards, the rugged design makes sure its reliability as well as its stability to work in an extremely harsh environment. By providing basic I/O interfaces in a palm-sized box chassis, the system is suitable for industrial automation, smart factory, edge computing, and IIoT gateway applications.

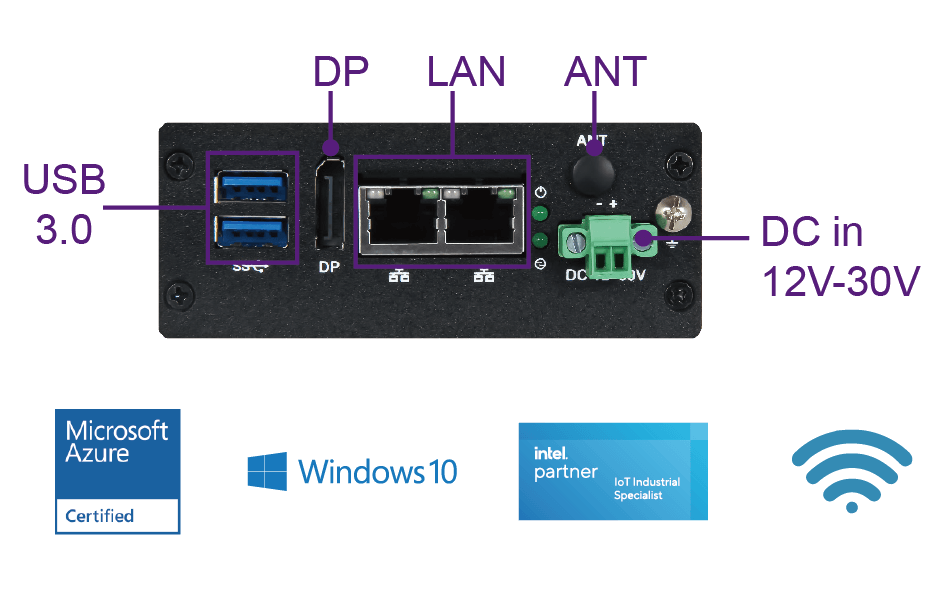

LYNX-6110 IO

規格

Model Name LYNX-6110
Part Number AS5-3571
General
Processor Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory 4GB onboard LPDDR4, 2400 MT/s, non-ECC;
up to 8GB (Optional)
Storage 32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
Power Input 12-30VDC (+/- 20%)
Operating System Windows® 10 IoT Enterprise (64bit)
Yocto v2.7
Expansion 1x M.2 Key E 2230 for wireless module
Other TPM 2.0 onboard
Basic I/O Interface
Power Connector 1x 2-Pin Terminal Block
Ethernet 2x 10/100/1000 GbE (Intel® I210)
USB 2x USB 3.0
Display 1x DP v1.4 4096 x 2160 @ 60Hz
Certification
CE EN 55032; EN 55024/EN 55035
CE EN 61000-6-4; EN 61000-6-2
FCC Part 15 Subpart Class B
LVD EN 62368-1
Storage Temperature -40 °C ~ 85 °C
Operating Temperature 0°C ~ 50°C
Permissible Humidity 5-95% RH operating, non-condensing
5-95% RH storage, non-condensing
Vibration 1G with DIN-rail mounting
5G with wall mounting (IEC/EN 60068-2-6)
Shock 15G with DIN-rail mounting
50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection IP 30
Dimension 100mm(W) x 40mm(H) x 92mm(D)
Weight 0.42KG
Mounting DIN-rail / Wall Mount
Power Adaptor 2-pin terminal block connector to DC jack cable
60W AC to DC Power Adaptor via DC jack
Video Adaptor DP to VGA / DP to DVI-D

Video

LYNX Series: Link to the World

Palm-size power and innovation for integrated AIoT solutions based on Intel Celeron N3350 and certified by Microsoft Azure IoT Edge Device. LYNX Series provides a rich portfolio of ultra-small form factor IoT appliances that offer a variety of features including low power consumption connectivity and expansion, rich interfaces for data acquisition and server connection, ruggedized design, and industrial regulatory compliance. It’s one of the best AIoT solutions for you.
