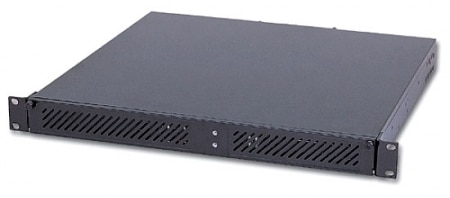

PRC-1194

19″ 1U Height industrial rack-mount P4 chasis

Features

  • Single power supply with higher +12V output for Pentium® 4 processor
  • Cooling tunnel design for expiring heatgenerated by CPU
  • Power cable routed beneath the cooling tunnel to avoid disturbance of air path
  • Two PCI expansion slots for adding morefunctions to system

Specification

Specifications
Construction Heavy-duty steel
Drive Bay External: NB CD-ROM x1 (or equivalent CD-RW / DVD-ROM) + NB FDD x1 Internal: 3.5” HDD x2
Air Filter N/A
Cooling Fan One 12cm ball-bearing fan
Indicator Power on/off x1, HDD x1
Switch Power on/off x1, System reset x1
Speaker N/A
Connector Two USB connectors on the front panel, reserved one COM port cutout
Standard Colo Black
Dimension 481(W) x 429(D) x 44(H) mm; 19”(W) x 18.7”(D) x 1.7”(H)
Weight Net: 10 kg (22.05 lb); Gross: 13 kg (28.67 lb)
Backplane PBP-03P2X: 3-slot (2xPCI) PICMG backplane

Ordering Guide

Ordering Guide
PRC-1194-03P2X-2501
19” 1U rack-mount chassis with 3-slot (2xPCI) PICMG backplane and 250W PFC power supply
