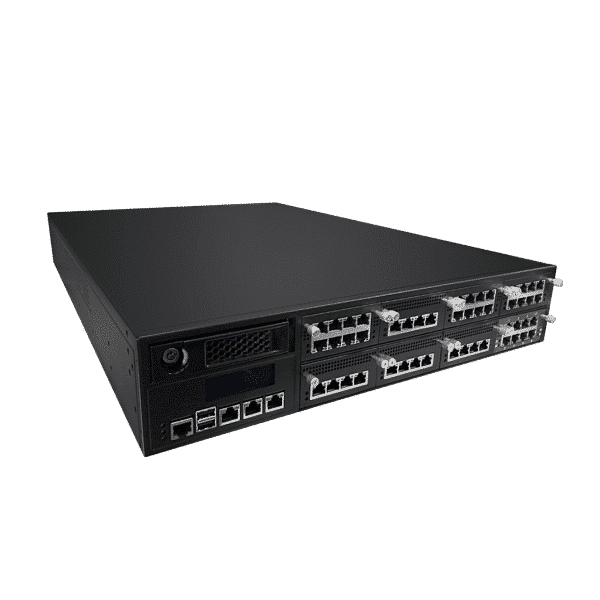

PNAC-72710 Right view

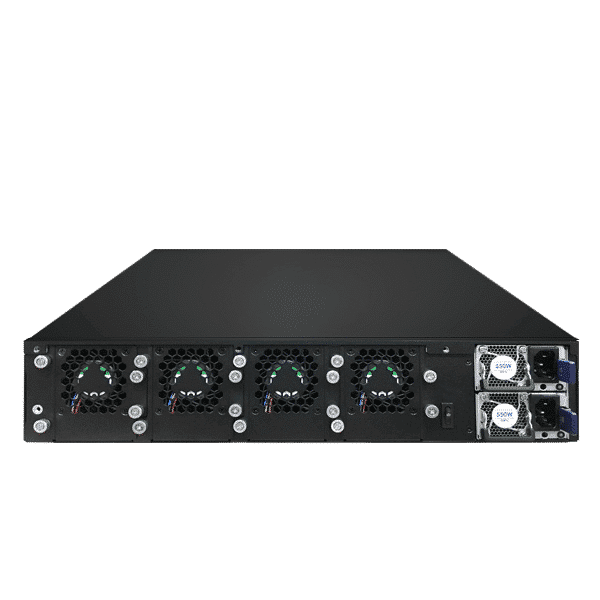

PNAC-72710 Rear view

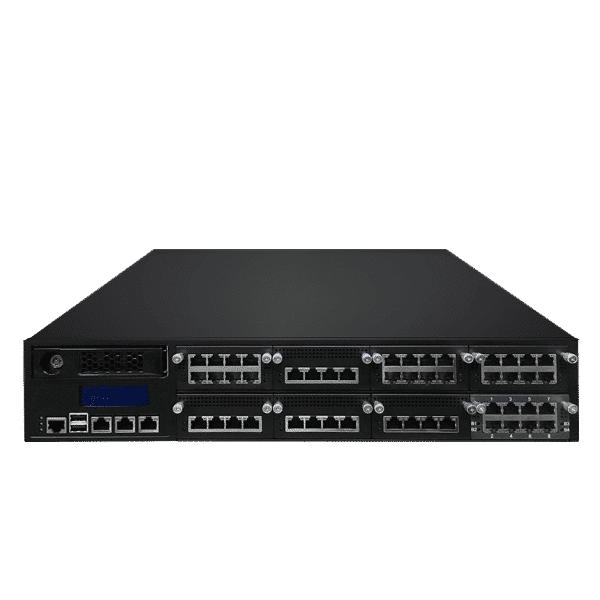

PNAC-72710 Front view
PNAC-72710 Left view

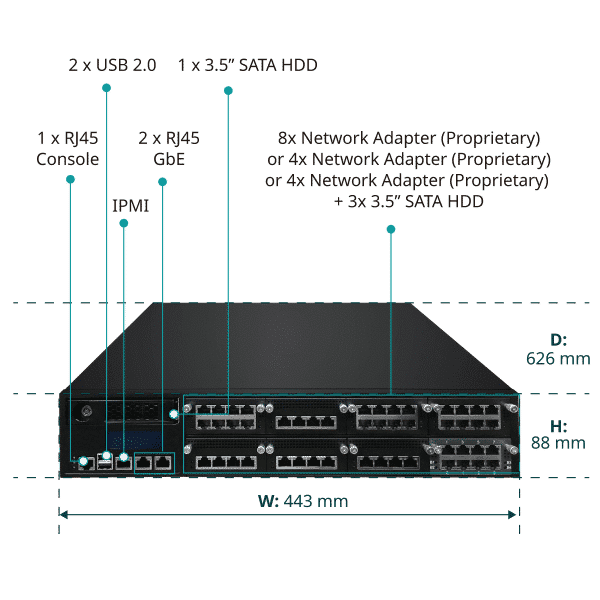

PNAC-72710 Front View I/O Description

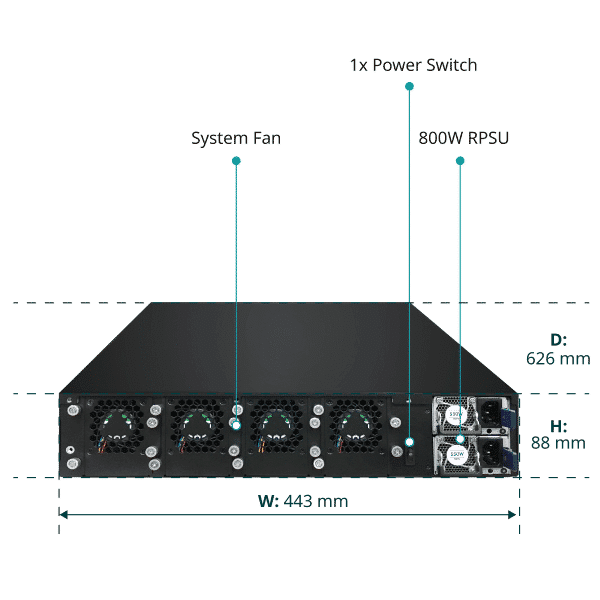

PNAC-72710 Rear View I/O Description

PNAC-72710

2U High Performance Platform with Intel® Dual 3rd Gen Xeon® Scalable CPU and up to Eight Network Modules

Features

  • 2x Intel® 3rd Gen Xeon® Scalable CPU (Ice Lake-SP)
  • 16x DDR4-3200 RDIMM ECC Memory (Up to 512GB)
  • Up to 8x Proprietary Network Modules for Various Ethernet Configurations
  • 1x PCIe 4.0 x16 Expansion Slot for GPU/DPU/FPGA Utilities
  • 2x PCIe 3.0 M.2 SSD
Documents & Downloads

PNAC-72710 is a 2U high-performance platform with Intel® Dual 3rd Gen Xeon® Scalable CPU and up to eight network modules. This system’s powerhouse packs a punch, delivering superior performance and scalability for various applications. Whether running a high-end data center or using it as a gaming or video streaming machine, this system has what it takes to deliver an unbeatable experience. With two Intel® 3rd Gen Xeon® Scalable CPUs (Ice Lake-SP) and 16 x DDR4-3200 RDIMM ECC Memory (Up to 512GB), you can rest assured that your workloads can be easily handled. Furthermore, the system comes with up to 8 proprietary network modules for various Ethernet configurations, ensuring you can get the most out of your setup. In addition, the system comes with 1 PCIe 4.0 x16 expansion slot for GPU/DPU/FPGA utilities, and 2 PCIe 3.0 M.2 SSD for fast and efficient storage. With such a complete setup, you can be sure that the PNAC-72710 will provide you with top-notch performance and scalability no matter what tasks you throw at it.

Specification

Specifications
General
CPU 2x Intel® 3rd Gen Xeon Scalable Processor (formerly Ice Lake-SP)
PCH/Chipset Intel® C621A PCH (formerly Lewisburg-R)
System Memory 16x DDR4 ECC 3200MHz RDIMMs (Up to 512GB), 8 Slots with Each Processor
Ethernet Port Up to 64x Ethernet Ports from 8x Network Modules with 640GbE bandwidth in max
Bypass Depends on the Proprietary Network Modules chosen
Expansion
  • Up to 8x PCIe Gen4 x8 Network Modules (Proprietary)
  • 1x PCIe Gen4 x16 for Standard PCIe card
Storage Device
  • 4x SATA 3.0 HDD or SSD (by SKU)
  • 2x PCIe 3.0 M.2 SSD
Power Supply 800W CPRS Redundant Power Supply Unit
Dimension
  • 443 (W) x 600 (D) x 88 (H) mm
  • 17.72″ (W) x 24″ (D) x 3.52″ (H)



Operation
Operating Environment
  • Temperature: 0 to 40°C (32 to 104°F)
  • Humidity: 20 to 90%RH
Storage Environment
  • Temperature: -10 to 70°C (14 to 158°F)
  • Humidity: 5 to 95%RH
Certification CE/FCC
OS Support Linux Kernel



Front Panel
Management Port
  • 1x RJ45 System Console Port
  • 1x RJ45 GbE Port (BMC)
Ethernet Port 2x RJ45 GbE Ports
LCD Panel 128x 32/64 Graphic, 2x 16 Characters
LED Power / PSU / Storage / Ethernet
USB Dual USB 3.0 Ports
Display 1x VGA Port optional from LOM or VGA Module
LOM IPMI 2.0 with GbE Speed



Optional CPUs
Models Cores/Threads Frequency(Max) Cache TDP
Intel® Xeon® Platinum 8351N 36C/72T 2.40GHz (3.50GHz) 54MB 225W
Intel® Xeon® Gold 6338T 24C/48T 2.10GHz (3.40GHz) 36MB 165W
Intel® Xeon® Gold 6336Y 24C/48T 2.40GHz (3.60GHz) 36MB 185W
Intel® Xeon® Gold 6330 28C/56T 2.00GHz (3.10GHz) 42MB 205W
Intel® Xeon® Gold 6326 16C/32T 2.90GHz (3.50GHz) 24MB 185W
Intel® Xeon® Gold 5320T 20C/40T 2.30GHz (3.50GHz) 30MB 150W
Intel® Xeon® Gold 5318Y 24C/48T 2.10GHz (3.40GHz) 36MB 165W
Intel® Xeon® Gold 5317 12C/24T 3.00GHz (3.60GHz) 18MB 150W
Intel® Xeon® Gold 5315 8C/16T 3.20GHz (3.60GHz) 12MB 140W
Intel® Xeon® Silver 4316 20C/40T 2.30GHz (3.40GHz) 30MB 150W
Intel® Xeon® Silver 4314 16C/32T 2.40GHz (3.40GHz) 24MB 135W
Intel® Xeon® Silver 4310 12C/24T 2.10GHz (3.30GHz) 18MB 120W
Intel® Xeon® Silver 4310T 10C/20T 2.30GHz (3.40GHz) 15MB 105W
