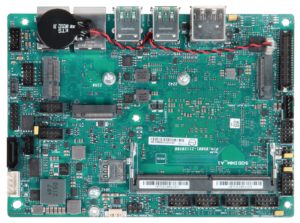

PEB-2274

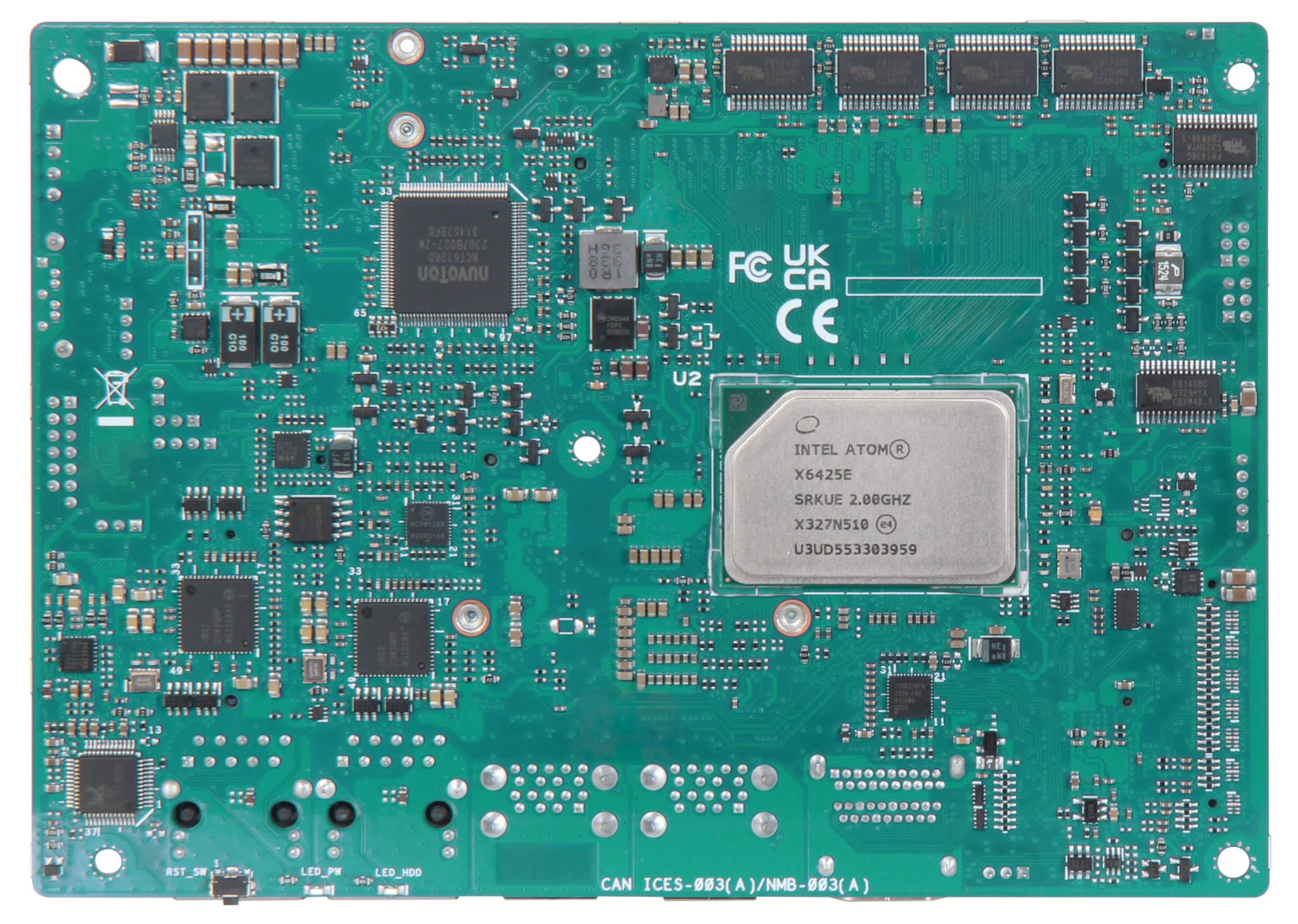

PEB-2274 back

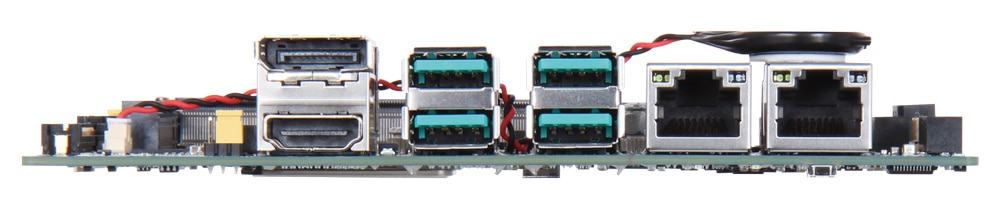

PEB-2274 IO

PEB-2274

Intel® Elkhart Lake Atom Processor based 3.5″ embedded Board with DDR4 SDRAM, Gigabit Ethernet, M.2(E+B+M key) sockets, 6x COM ports and 9~36V DC input

Features

  • Supports DDR4 3200 MHz non-ECC SDRAM on one SODIMM slots, up to 32GB
  • Supports three displays configurations: HDMI®+DP+LVDS
  • Supports three M.2(E+B+M key)slots, one SATAIII port
  • Supports wide voltage of DC power input from 9V~36V
Datasheet
Service Request
Documents & Downloads

Description

PEB-2274 builds on Intel® Atom Elkhart Lake SoC and takes advantages of Intel® Atom Processor support DDR4 memory. Support two Gigabit Ethernet ports and three M.2 sockets and wide voltage of power input from 9V to 36V.

Specification

GENERAL

Processor Intel® Atom® x6425E, 4 cores, 2.0GHz/3.0GHz, 12W TDP
Chipset Integrated
Memory
  • DDR4 3200 MHz, In-Band ECC (IBECC)
  • SO-DIMM socket, up to 32GB
Storage Devices 1x SATA III
Watchdog Timer YES
Expansion Interface
  • 1 x M.2 E key, type 2230 for WIFI/BT device
  • 1 x M.2 M key, type 2280 (SATA mode & PCIe x2 mode)
  • 1 x M.2 B key (USB 2.0)

I/O INTERFACE

Audio
  • Realtek ALC897
  • Line-out or Mic-in
Ethernet 2 x Intel® i210IT with 2 x RJ-45
Serial port 6 (2 x RS-232/422/485, 4 x RS 232)
USB
  • 4x USB 3.2 Gen2 ports on rear I/O
  • 1x USB 2.0 Header support additional 2 x USB2.0 connectors
Keyboard & Mouse N/A
GPIO 1(8-bit)
Other 1 x SPI TPM header

DISPLAY

Graphic Controller Intel® 10th Gen UHD Graphics
Display Interface
  • HDMI 2.0 up to 4K x 2K @ 60 Hz
  • DP++1.2 up to 4096 x 2160 @ 60 Hz
  • LVDS up to 1920 x 1080 @ 60 Hz

Mechanical & Environment

Dimension 146mm(L) x 105(W) mm
Display Interface DC 9V~36V input
Environment
  • Operating temperature: -40°C to 85°C
  • Non-Operating temperature: -40°C to 85°C
  • Relative humidity:10 to 95% (non condensing)
MTBF TBD

Ordering Guide

Ordering Guide
AB1-3S90 (GP).PEB-2274 Intel Elkhart Lake SoC on Board(x6425E,3.0G,12C,1.5M).EBC. w/ DDR4/DP/HDMI/GbE/COM/Audio/USB

Packing List

Packing List
One PEB-2274 Main board
