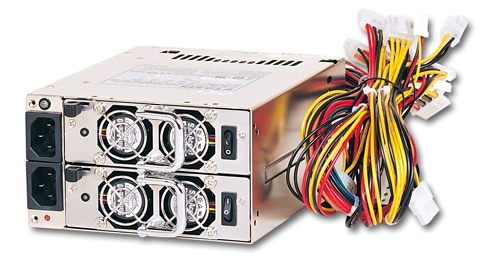

ORION-D4602P

460W+460W mini-redundant with active PFC power supply

Features

  • Mini-redundant power supply suitable for 2U/4U and larger chassis
  • Active PFC, full-range input
  • Two independent AC inputs

Specification

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 9A@115V, 5A@230V
Efficiency > 65%
Holdup Time 20 ms. at full load
Over Voltage Protection +5V: 5.6 ~ 6.5V; +3.3V: 3.8 ~ 4.3V; +12V: 13.6 ~ 15.6V
Over Power/
Load Protection
Output power over 110% ~ 130% on +3.3V/+5V;
120% ~ 150% on +12V
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV
Temperature/
Humidity
Operating: 0 ~ 40°C, 20% ~ 90%RH
Storage: -40 ~ 70°C, 5% ~ 95%RH
Dimension
(WxDxH)
150 x 190 x 85 mm; 5.9” x 7.5” x 3.3”

Ordering Guide

Ordering Guide
ORION-D4602P
460W+460W mini-redundant power supply with active PFC (PS/2 bracket is available)
