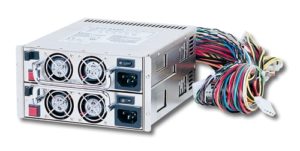

ORION-D3502P

350W+350W mini-redundant with active PFC power supply

Features

  • Mini-redundant ATX power supply suitable for 2U and larger chassis
  • Active PFC, full-range input
  • Two independent AC inputs

Specification

Specifications
Input Voltage 100V~240V AC
Input Frequency 47 ~ 63 Hz
Input Current 6A@115V, 3A@230V
Efficiency > 80%
Holdup Time 16 ms. at full load
Over Voltage Protection 3.3@4.5V; 5V@6.5V; 12V@14.5V
MTBF > 100,000 hrs
EMI & Safety Approval UL, cUL, TUV, CE, FCC
Temperature/
Humidity
Operating: 0 ~ 40°C, 20% ~ 90%RH
Storage: -20 ~ 60°C, 5% ~ 95%RH
Dimension

(WxDxH)

150 x 190 x 84 mm; 5.9” x 7.2 x 3.4”

Ordering Guide

Ordering Guide
ORION-D3502P
350W+350W mini-redundant power supply with active PFC (PS/2 bracket is available)
