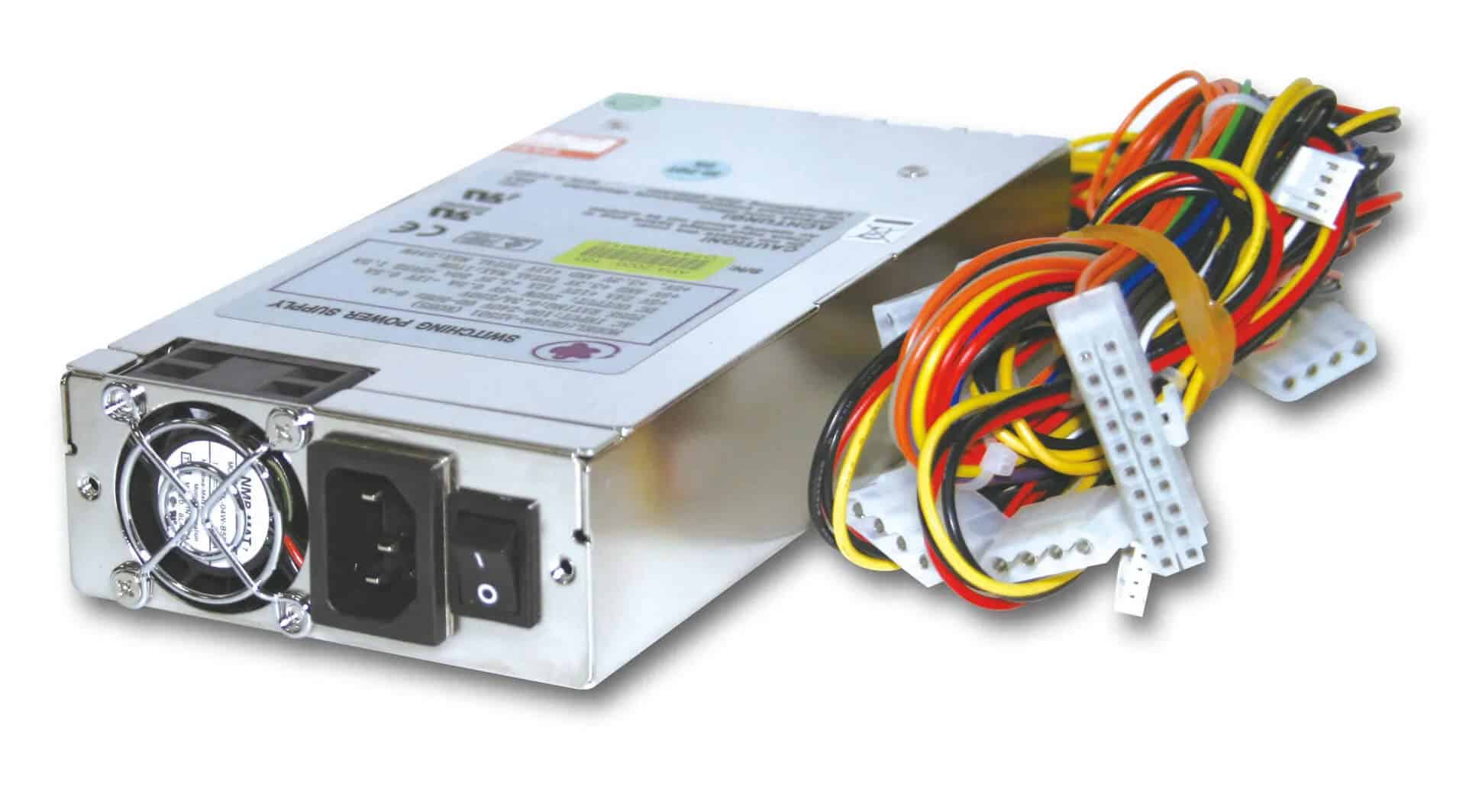

ORION-A2501

250W 1U ATX power supply with active PFC

Features

  • Low profile power supply suitable for 1U and node chassis
  • Active PFC, full-range input
  • Support for Intel® Pentium® 4 processor
  • Total output power of +5V, +3.3V and +12V is 234W

Specification

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 6A@115V, 3A@230V
Efficiency > 65%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 5.4 ~ 6.5V; +3.3V: 3.9 ~ 4.47V; +12V: 13.6V ~ 15.6V
Over Power/
Load Protection
Output power over 110% ~ 160%
MTBF >105,405 hrs
EMI & Safety Approval UL, cUL, TUV, CE, FCC,CCC
Temperature/
Humidity
Operating: 5°C ~ 40°C, 20% ~ 90%RH
Storage: -20°C ~ 60°C, 5% ~ 95%RH
Dimension
(WxDxH)
100 x 190 x 40.5 mm; 3.93” x 7.48” x 1.59”

Ordering Guide

Ordering Guide
ORION-A2501P
250W 1U ATX power supply with active PFC
