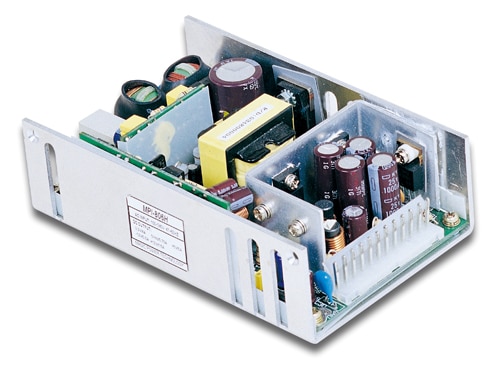

MPI-806H

60W universal input open-frame power supply

Features

  • 80W with 8.6CFM forced air-cooling
  • Compact size with ATX output
  • PG/PF signal
  • +5V standby & remote on/off

Specification

Specifications
Input Voltage 90V ~ 264V AC
Input Frequency 47 ~ 63 Hz
Input Current 2A@115V, 1A@230V
Efficiency > 70%
Holdup Time 20 ms. at full load
Over Voltage Protection +5V: 5.15 ~ 6.45V; +3.3V: 3.7 ~ 4.5V; +12V: 12.6 ~ 15.6V
Over Power/
Load Protection
Output power over 120%
MTBF 130,000 hrs
EMI & Safety Approval UL, TUV
Temperature/
Humidity
Operating: 0oC ~ 40oC, 20% ~ 90%RH
Storage: -20oC ~ 60oC, 5% ~ 95%RH
Dimension
(WxDxH)
128 x 81 x 40 mm; 5.0” x 3.2” x 1.55”

Ordering Guide

Ordering Guide
MPI-806H
60W ATX, open-frame power supply
