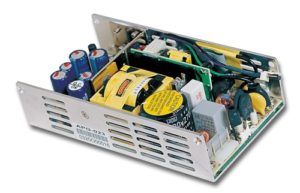

MPD-810H

120W universal input open-frame power supply

Features

  • Open-frame DC to DC power supply suitable for node chassis
  • Five rails outputs (+5V, +12V, -12V, +3.3V & +5Vsb)
  • 10~30 VDC input
  • Higher +5V output (10A)

Specification

Specifications
Input Voltage 10V ~ 30V DC
Input Frequency 47 ~ 63 Hz
Input Current 18A@10V DC
Efficiency > 70%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 5.6 ~ 6.6V; +3.3V: 3.6 ~ 4.2V; +12V: 13.2 ~ 14.6V
Over Power/
Load Protection
Output power over 110% ~ 160%
MTBF 130,000 hrs
EMI & Safety Approval UL
Temperature/
Humidity
Operating: 0oC ~ 50oC, 20% ~ 90%RH
Storage: -20oC ~ 70oC, 5% ~ 95%RH
Dimension
(WxDxH)
83.8 x 152.4 x 38.1 mm; 3.3” x 6” x 1.5”

Ordering Guide

Ordering Guide
MPD-810H
120W 10~30VDC input open-frame power supply
