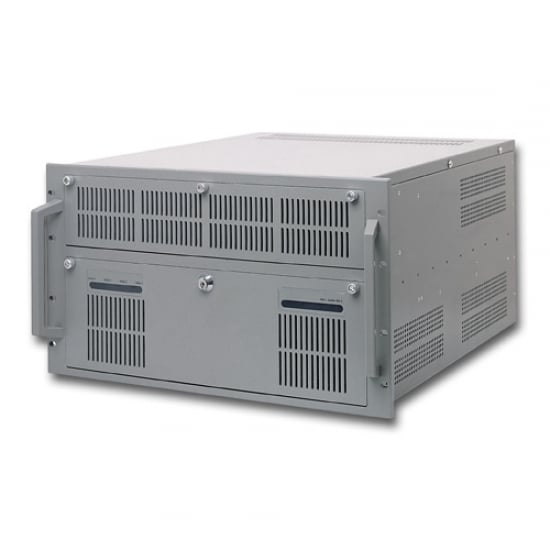

IRC-860

19″ 6U reck-mpunt CTI chassis

Features

  • 4 x 5.25″ + 2 x 3.5″
  • Three 12 cm ball-bearing cooling fans provide better ventilation for better system reliability
  • Special rack-mount handle
  • Detachable card cage for ease of installation and maintenance
  • Modularized function panel for quad systems
  • Single PS/2 power supply and dual mini-redundant 460W + 460W redundant power supply installable
  • Replaceable modularized back panel for 20-slot ISA/PICMG backplane or ATX M/B
Datasheet
Service Request
Documents & Downloads

Specification



Specifications
Construction Heavy-duty steel with aluminum front panel
Drive Bay A type: 5.25″x2 + 3.5″ x6
B type: 5.25″x4 + 3.5″ x2
Card Retainer Two locations for one card retainer
Cooling Fan Three 12cm dual ball bearing fans
Indicator HDD x4, Power fail x1, PSU1 x1, PSU x2
Switch Power on/off x1, System reset x4, K/B lock x4, PSU fault alarm reset x1
Air Filter One replaceable air filter for boards and two for drives
Car Cage Removable card cage for ease of installation
Standard Color Darl gray, Black
Dimension 482(W) x 495.3(D) x 266(H) mm; 19”(W) x 19.5”(D) x 10.5”(H)
Weight Net: 22 kg (48.4 lb); Gross: 24 kg (52.8 lb)
Backplane PBP-19AI: 19-slot (18xPCI) active PICMG backplane
PBP-19AC: 19-slot (12xPCI) active PICMG backplane
PBP-19P4: 19-slot (4xPCI) PICMG backplane
PBP-18D4: 18-slot dual-system PICMG backplane ATX M/B installable

Ordering Guide

Ordering Guide
IRC-860B-19P4-450XA
19″ 6U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives with 19-slot (4xPCI) PICMG backplane and 450W Autorange ATX power supply
IRC-860B-19P4-3005
19″ 6U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives with 19-slot (4xPCI) PICMG backplane and 300W redundant ATX power supply
IRC-860B-19P4-4005
19″ 6U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives with 19-slot (4xPCI) PICMG backplane and 400W redundant ATX power supply
IRC-860B-MX-450AX
19″ 6U rack-mount chassis of 4 x 5.25″ + 2 x 3.5″ drives for ATX/MB with 450W Auto-renge ATX power supply
