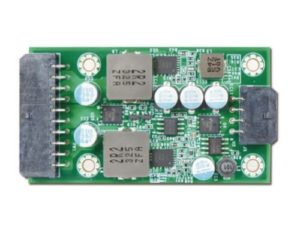

GADIWA-B1120

120W DC/DC 12V Input/ATX output, Board Type Converter

Features

  • 12V DC/input, plug into the ATX connector with board output
  • Compact and user-friendly design for installation and maintenance
  • Fan-less design for mission-critical application
  • Small size for 1U or higher system to save space
  • -40°C to 75°C wide temperature support

Description

GADIWA-B1120 is a DC to DC 12V input board type converter. It normally support continuous 120 Watts and peak 160 Watts.

GADIWA-B1120 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line;therefore, it can provide high quality and better performance.

Specification

Input Voltage Voltage 12V (+5%/-4%)
Output 120Watts/ 160Watts peak
Efficiency >90% @ 12V
MTBF 1,226,530hrs @40°C, 353,098hrs @75°C
EMI & Safety Approval CE, FCC
Input Connector Mini-Fit 8 pin (P/N: B6902040)
Output Connector Mini-Fit 20 pin (P/N: B6902071)
Dimension (WxDxH) 38 x 68 x 12.5 mm
Operation Temperature -40°C ~ 75°C

Ordering Guide

Ordering Guide
GADIWA-B1120
120W DC/DC 12V/input.ATX/output.Wide Temperature.Board Type Converter
