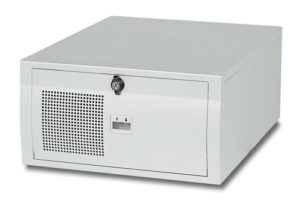

AREMO-8164

8-slot full-size industrial node chassis (Shoe-box)

Features

  • Two 5.25” and two internal 3.5” HDD drive bays for CD-ROM or mobile rack, easy to install software and mirror disk (RAID1)
  • Two USB ports on the front panel
  • Can be vertically or horizontally mounted, easy to fit into space limited environment
  • One 12cm ball-bearing cooling fan for better ventilation
  • One replaceable air filter for easy cleaning
  • Two adjustable positions for hold-down card retainers provide better protection from vibration
  • Wall-mounting bracket equipped
  • Both 8-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes
  • Field replaceable power supply bracket for both normal PS/2 and PS/2 redundant power supply, easy for changing defected power supply

Description

AREMO-8164 is designed for PICMG 1.0/1.3 with 8-slot backplane that is 4U full size industrial node chassis built with two 5.25” HDD driver space for CD/DVD-ROM, two internal 3.5” HDD driver bays and replaceable air filter for easy maintenance. AREMO-8164 equips two USB interface on front panel, and also high wattage PS/2 form factor PSU. The compact size feature of AREMO-8164 is suitable for Industrial and Engineering applications.

Specification

TYPE Node
MODEL AREMO-8164
SLOT 8
ORDERING GUIDE AREMO-8164 AREMO-8164/B
BACKPLANE
BP MODEL PBPE-08P41 PBPE-08A7 PBPE-07P4 PBP-08P4 PBP-08P3 PBP-08I
PICMG 1.3 1.3 1.3 1.0 1.0 1.0
PCIe 3 2
PCI/PCI-X 4/0 7/0 4/0 4/0 3/0

Ordering Guide

Ordering Guide
AREMO-8164
8-slot full-size industrial node chassis
AREMO-8164/B
8-slot full-size industrial black node chassis
