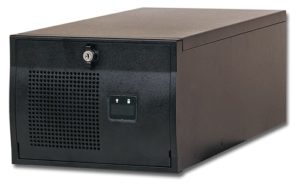

AREMO-6182

6-slot full-size industrial node chassis (Shoe-box)

Features

  • One external 5.25” and one 3.5” internal HDD drive bay
  • One replaceable air filter for easy cleaning
  • Can be vertically or horizontally mounted, easy to fit into space limited environment
  • One 12cm ball-bearing cooling fan for better ventilation
  • The fan filter panel can be installed in different directions
  • Two adjustable positions for hold-down card retainers provide better protection from vibration
  • Wall-mounting bracket equipped
  • Both 6-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes

Description

AREMO-6182 is designed for PICMG 1.0/1.3 with 6-slot backplane that is 4U full size industrial node chassis built with one 5.25” HDD driver space for CD/DVD-ROM, one internal 3.5” HDD driver bays and replaceable air filter for easy maintenance. AREMO-6182 equips two USB interface on front panel, and also high wattage 1U form factor PSU. The compact size feature of AREMO-6182 is suitable for Industrial and Engineering applications.

Specification

TYPE Node
MODEL AREMO-6182
SLOT 6
ORDERING GUIDE AREMO-6182/B
BACKPLANE
BP MODEL PBPE-06A364 PBPE-06P4 PBPE-06P3 PBPE-06P2 PBPE-05A364 PBP-06P464 PBP-06P4 PBP-06P3 PBP-06I
PICMG 1.3 1.3 1.3 1.3 1.3 1.0 1.0 1.0 1.0
PCIe 2 1 2 3 1
PCI/PCI-X 1/2 4/0 3/0 2/0 1/2 4/0 4/0 3/0

Ordering Guide

Ordering Guide
AREMO-6182/B
6-slot full-size industrial black node chassis adapted with 6-slot PICMG backplane
