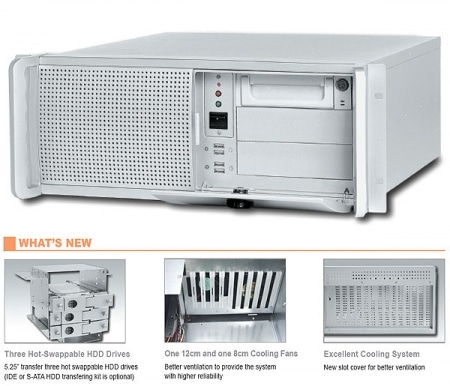

AREMO-4185

19” 4U industrial rack-mount chassis

Features

  • Three 5.25″ and two internal 3.5″ HDD drive bays for RAID 0, 1, 5 & CD-ROM
  • Four USB ports on the front panel
  • Two ball-bearing cooling fans (12 cm x1 + 8 cm x1) for better ventilation
  • Three card retainer positions
  • One modularized function panel for single (default) and dual (optional) systems
  • PS/2 redundant power supply installable
  • ATX M/B applicable, especially for large AT size M/B
Datasheet
Service Request
Documents & Downloads

Specification



Specifications
Construction Heavy-duty steel with aluminum front panel
Drive Bay External: 5.25”x3
Internal: 3.5” HDD x2
Card Retainer Three locations for one card retainer
Air Filter One replaceable air filter
Cooling Fan One 12cm and one 8cm ball-bearing cooling fans
Indicator Power on/off x1, HDD x1
Switch Power on/off x1, System reset x1
Speaker One 8Ω speaker
Connector Four USB ports on the front panel
Standard Color Silver, Black
Dimension 482(W) x 461(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H)
Weight Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb)
Backplane PBP-14I: 14-slot ISA backplane
PBP-14AC: 14-slot (12xPCI) active PICMG backplane
PBP-14A7: 14-slot (7xPCI) active PICMG backplane
PBP-14P4: 14-slot (4xPCI) PICMG backplane
PBP-13D4: 13-slot dual-system PICMG backplane

Ordering Guide

Ordering Guide
AREMO-4185-14P4-D3501P
19” 4U rack-mount chassis with 14-slot (4xPCI) PICMG backplane and 350W active PFC ATX power supply
AREMO-4185-14A7-D3501P
19” 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 350W active PFC ATX power supply
AREMO-4185-MX-D3501P
19” 4U rack-mount chassis for ATX motherboard with active 350W ATX, PFC power supply
AREMO-4185-14A7-D3202P
19” 4U rack-mount chassis with 14-slot (7xPCI) PICMG backplane and 320W active PFC redundant power supply
