AREMO-2173E

19” 2U industrial rack-mount chassis

Features

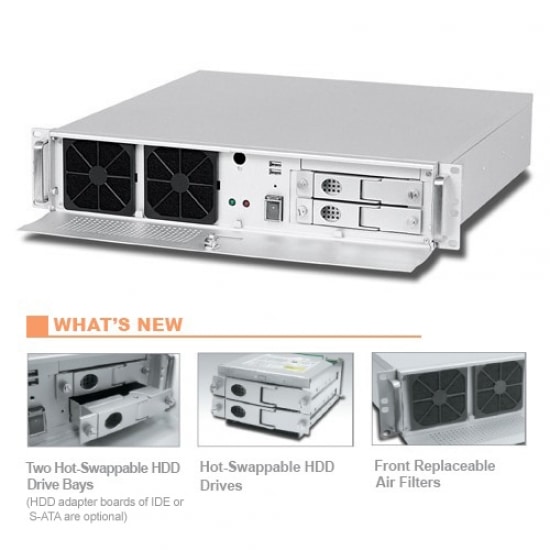

  • One slim CD-ROM and two hot-swap 3.5″ HDD (IDE or SATA)
  • Two USB ports on the front panel
  • Two 8 cm ball-bearing cooling fans for better ventilation
  • One power On/Off switch with protection cap and one touch free reset for secure access
Datasheet
Service Request
Documents & Downloads

Specification

Specifications
Construction Heavy-duty steel
Drive Bay External: Slim type CD-ROM x1, Hot-swap 3.5” HDD x2
Air Filter One internal replaceable air filter
Cooling Fan Two 8 cm ball-bearing fans
Indicator HDD x1+ Power on/off x1
Switch Power on/off x1 (with a protection cap) x1, System reset x1
Speaker One 8Ω speaker
Connector Two USB ports equipped on the front panel
Standard Color Silver, Beige, Black
Dimension 482(W) x 441.6(D) x 88.4(H) mm; 19”(W) x 17.4”(D) x 3.5”(H)
Weight Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb)
Backplane PBP-06V4: Vertical 6-slot (4xPCI) PICMG backplane
PBP-06V: Vertical 6-slot ISA backplane

Ordering Guide

Ordering Guide
AREMO-2173E-06V4-330X
19” 2U rack-mount chassis with vertical 6-slot (4xPCI) PICMG backplane and 330W ATX power supply
AREMO-2173E-06V4-D3501P
19” 2U rack-mount chassis with vertical 6-slot (4xPCI) PICMG backplane and 350W ATX, Active PFC power supply
AREMO-2173ER-06V4-3002X
19” 2U rack-mount chassis with vertical 6-slot (4xPCI) PICMG backplane and 300W Redundant power supply
