ANS-8A62/64P

Compact System with Intel® Atom® C3758(8C)/ C3558(4C) Processor for SD-WAN solution

OVERVIEW

ANS-8A62/64P series builds on Intel Atom® C3758/ C3558 processor with up to eight CPU cores. ANS Denverton series is a compact system with up to 2x SFP+, 13x GbE ports and PoE+ support, it is suitable for SDN (SD-WAN) application with 5G and IoT devices deployment.

FEATURES

  • Intel Atom® C3758(8C)/ C3558(4C) Processor (Denverton)
  • 2x 10Gb SFP+, 1x GbE RJ45, 12x GbE RJ45 (with PoE+ support by SKU)
  • 1x RJ45 Console, 2x USB3.0
  • 2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 64GB
  • 1x TPM2.0(on-board)
  • 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM
  • Design ready for 5G and WiFi 6 (802.11ax)
  • Compact design 2 in 1U rackmount

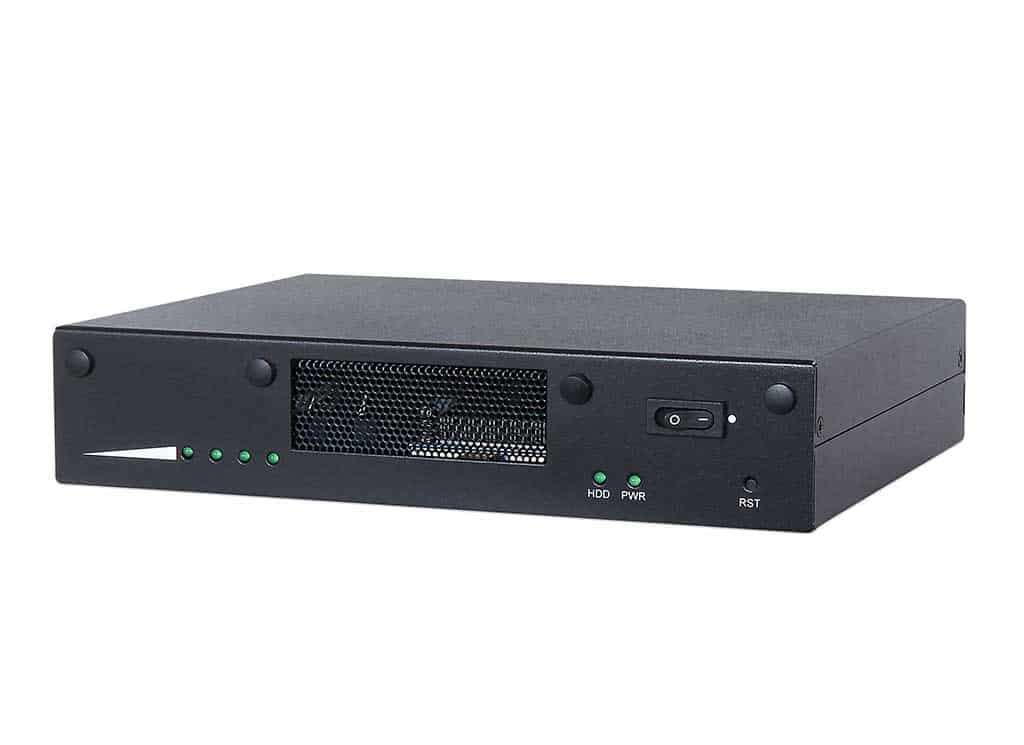

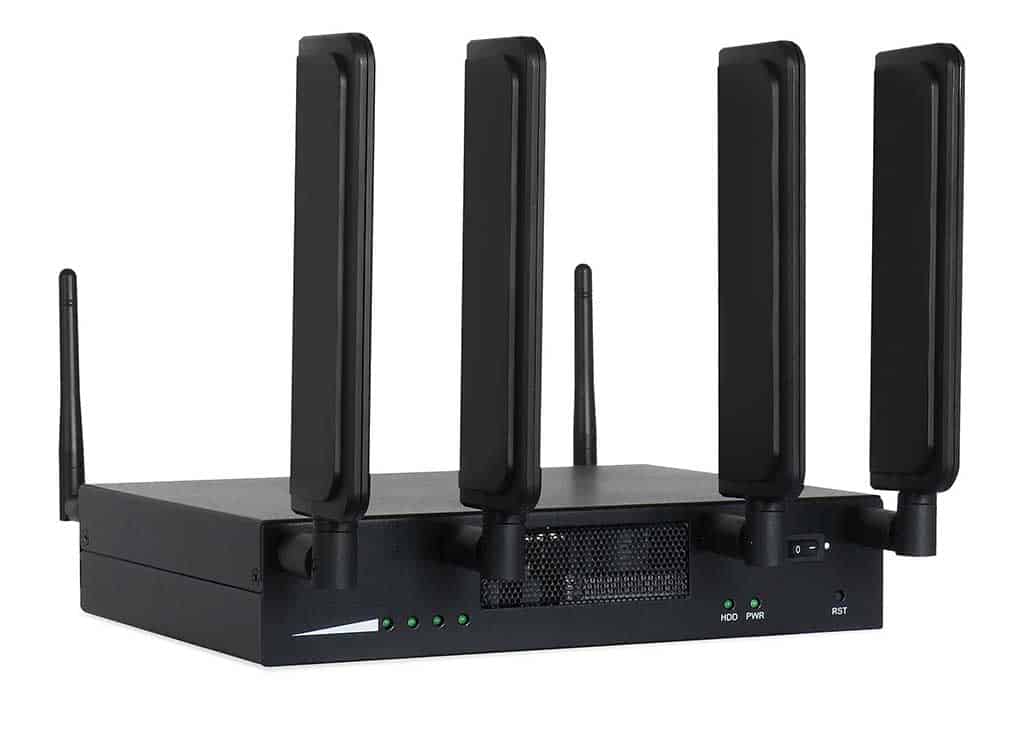

8A64-62_silder_1

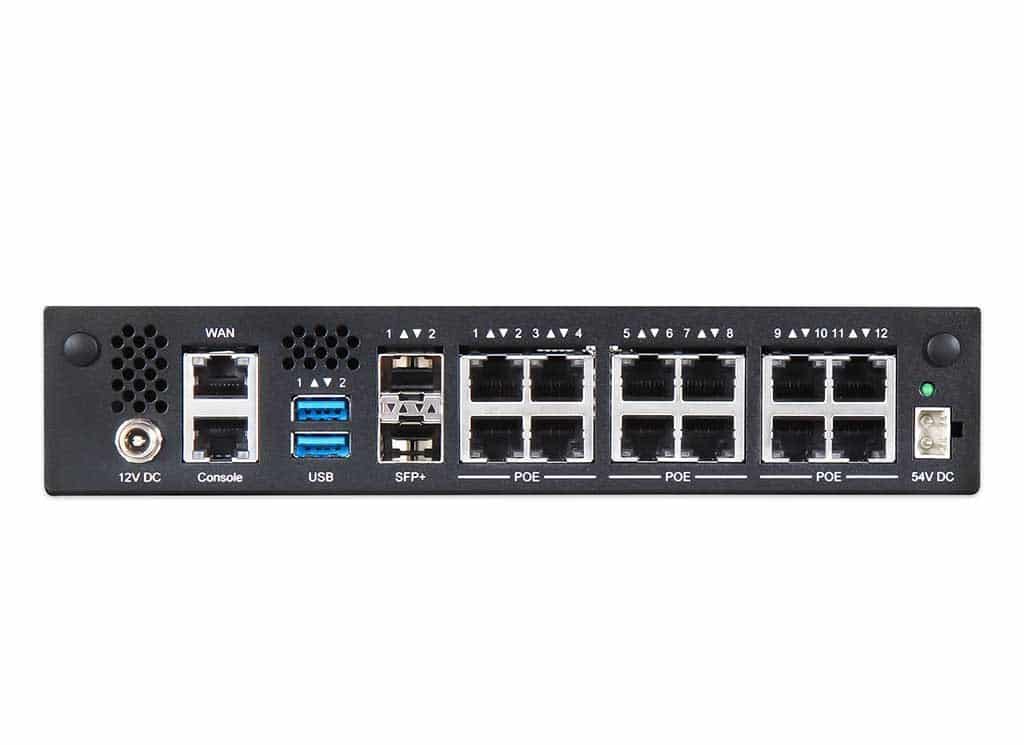

8A64-62_silder_8

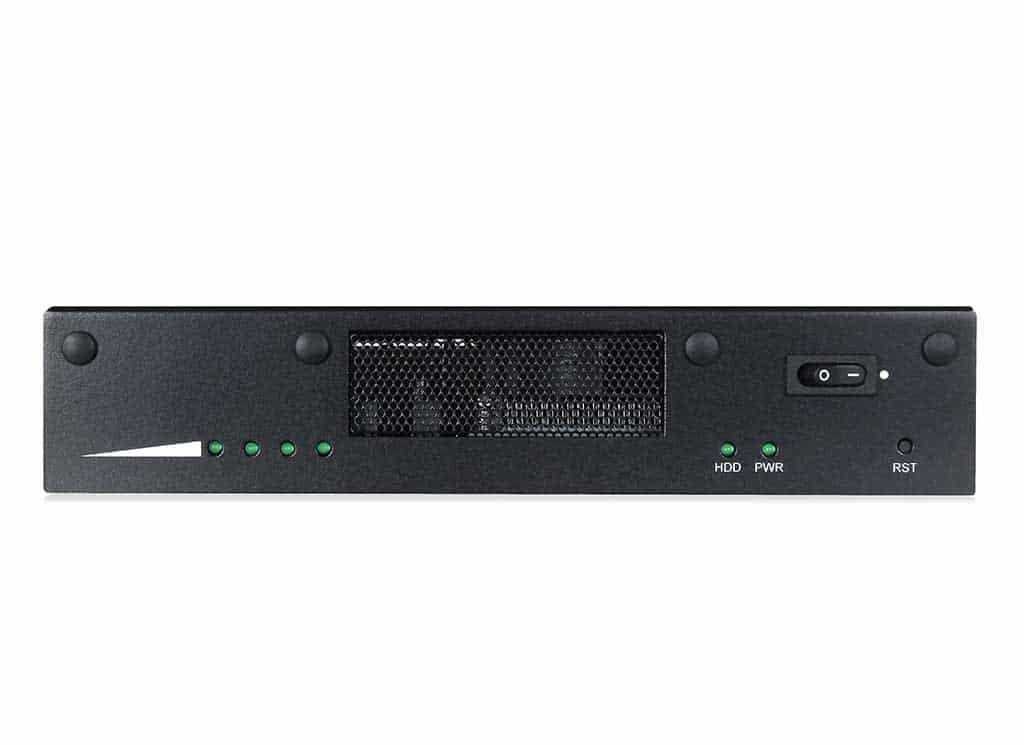

8A64-62_silder_7

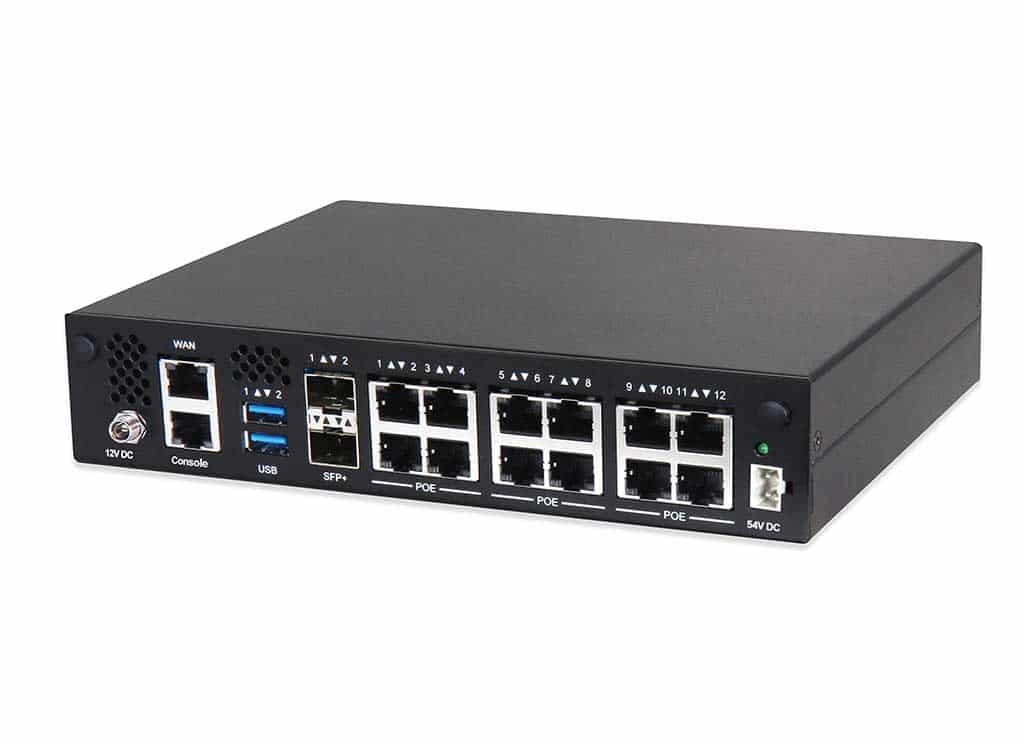

8A64-62_silder_6
8A64-62_silder_5

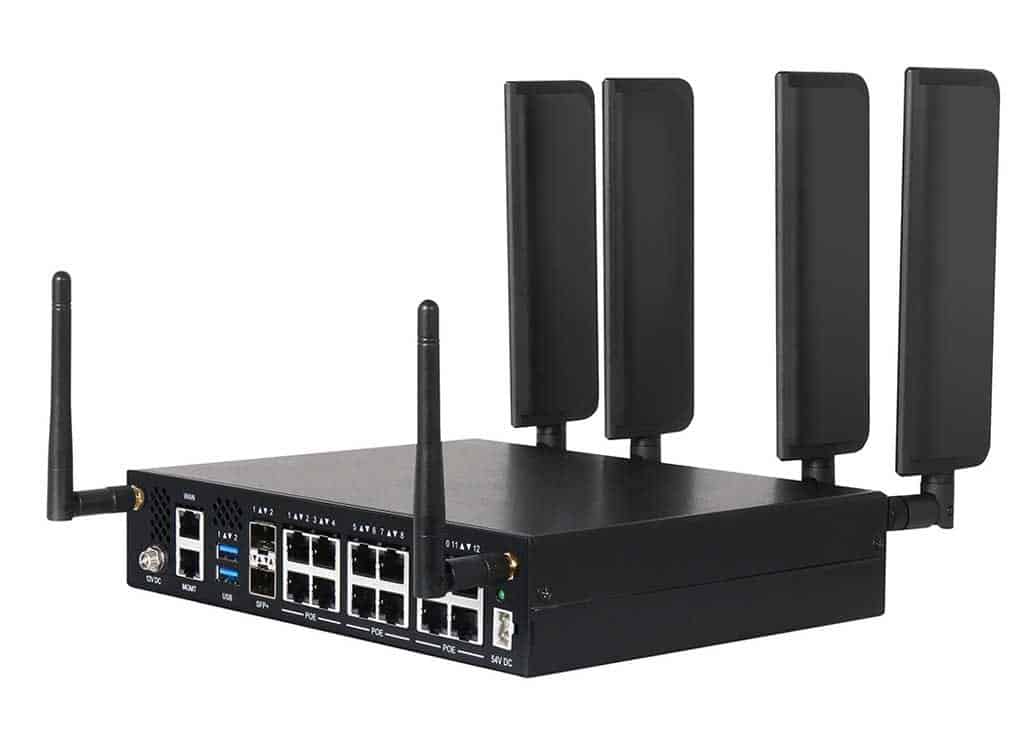

8A64-62_silder_4

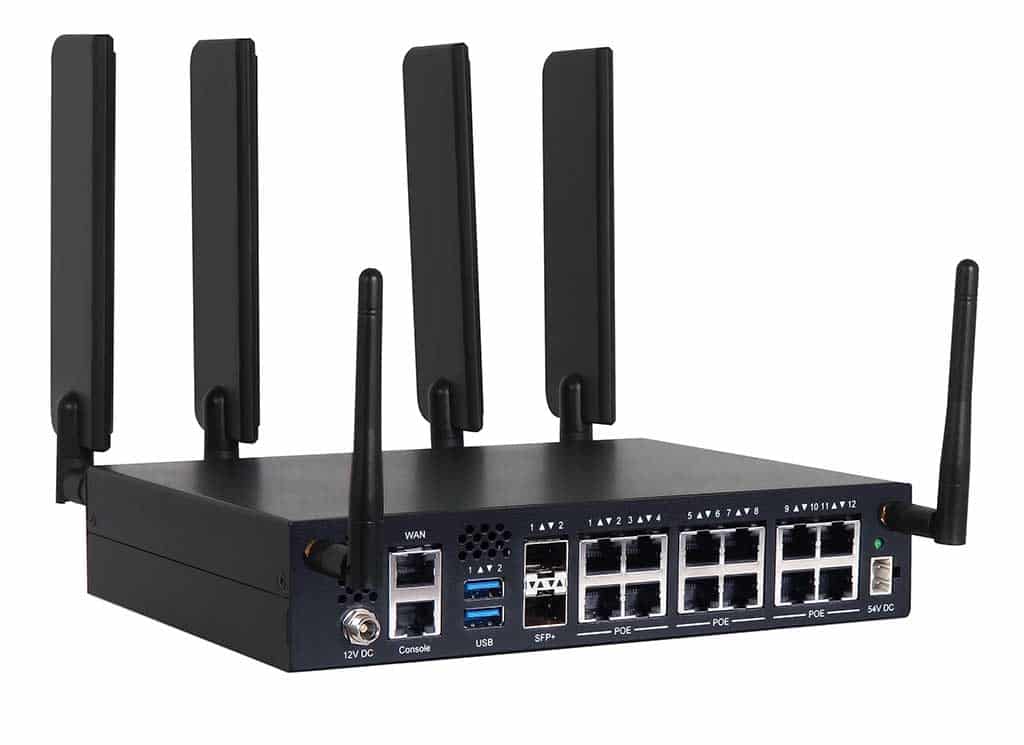

8A64-62_silder_3

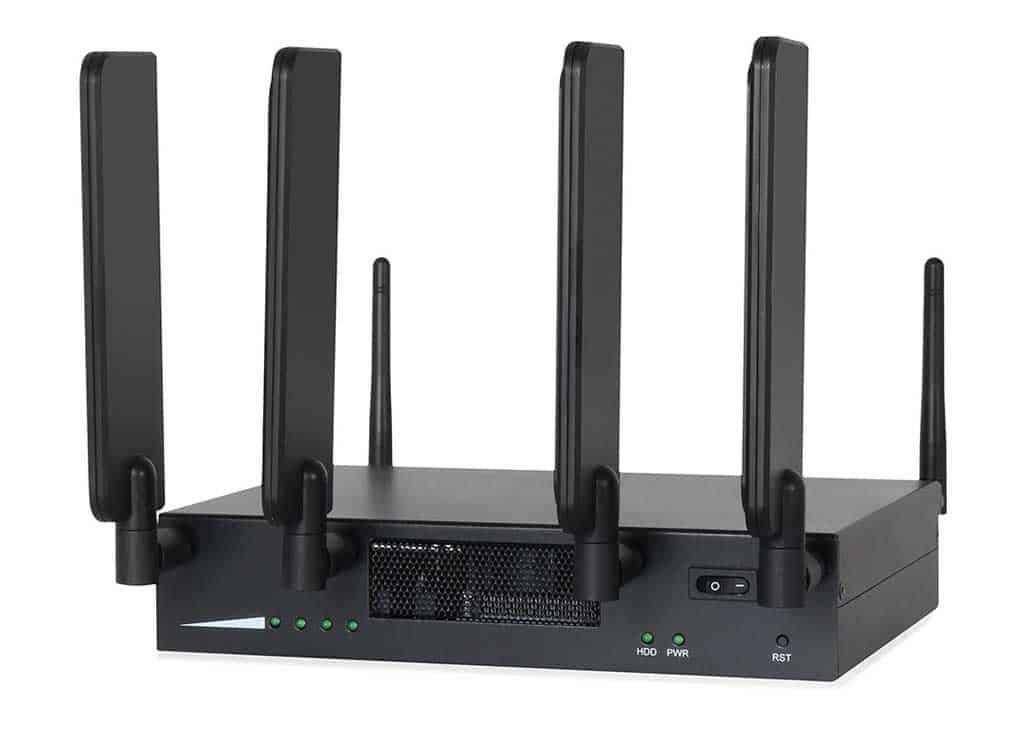

8A64-62_silder_2
Datasheet
PCBA Board Datasheet
Service Request
Application Note

SPECIFICATION

Model Name ANS-8A62 ANS-8A62P ANS-8A64 ANS-8A64P
System
Processor Intel® Denverton C3558(4C) Intel® Denverton C3758(8C)
BIOS AMI
Memory 2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 64GB
Ethernet – 12 x GbE RJ45 (RTL8111H), 1x GbE RJ45 (Marvell 88E1514)
– 2 x SFP+ (From Intel Denverton)
Expansion – 1 x Half-size Mini-PCIe slot with PCIe and USB2.0 signals
– 1 x M.2 Key-B slot with PCIe and USB3.0 signals
– 1 x SIM slot
Security TPM 2.0
Storage 1 x SATA III Connector for SATADOM
I/O Interface

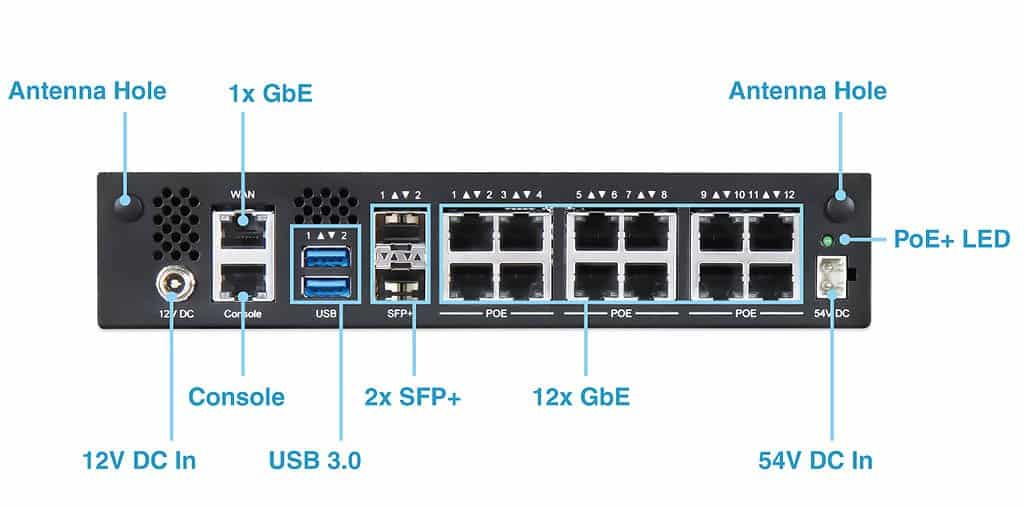

Console 1 x RJ45
USB 2 x USB 3.0
Ethernet – 13 x RJ45 GbE
– 2 x SFP+ 10GbE
PoE+ (Optional) 270W power support up to 12x GbE RJ45 PoE+
Antenna 6 x SMA Antenna holes for WiFi or LTE/5G module
Mechanical
Dimension 217 (W) x 168 (D) x 44 (H) mm
Weight 3.5Kg
System 65W Power Adapter, 110-220V AC input, 12V DC output
PoE+ 270W Power Adapter, 90-264V AC input, 54V DC output (PoE model only)
Environment
OS Temp. 0°C ~ 40°C, 10 ~ 90% RH
Storage Temp. -10°C ~ 70°C, 10 ~ 95% RH@55°C
Certification CE/FCC Class A

ORDERING GUIDE

AS1-3306 (R). ANS-8A62. C3558 4-core. 12x GbE LAN, 2x SFP+
AS1-3304 (R). ANS-8A62P. C3558 4-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required)
AS1-3305 (R). ANS-8A64. C3758 8-core. 12x GbE LAN, 2x SFP+
AS1-3303 (R). ANS-8A64P. C3758 8-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required)
