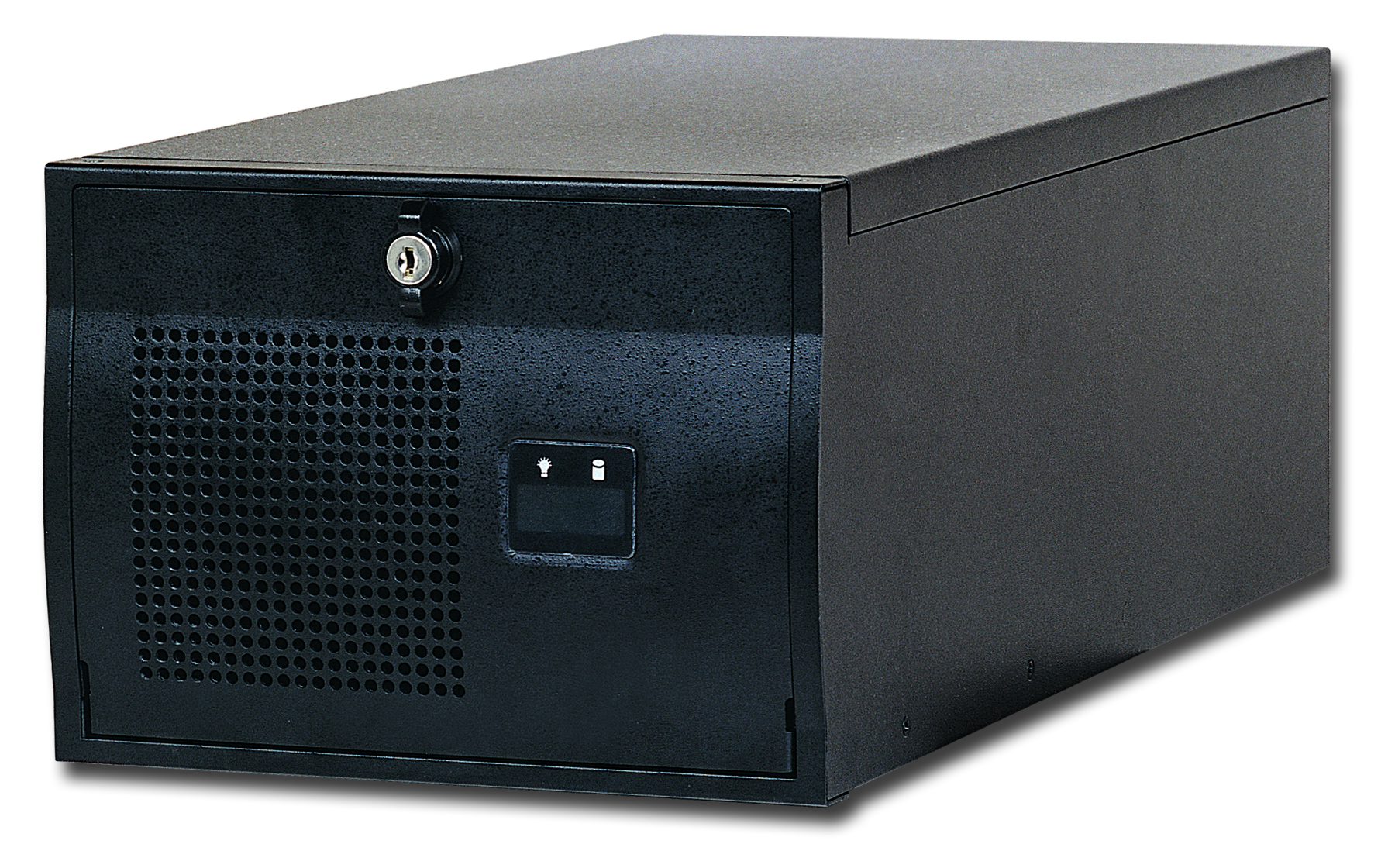

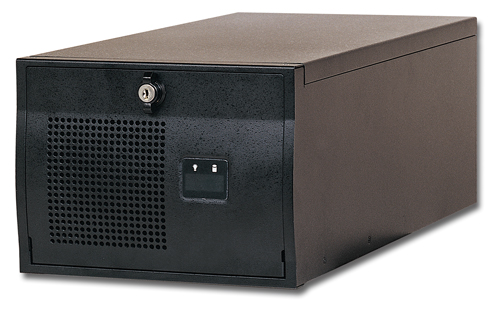

6-slot full-size industrial node chassis (Shoe-box)
AREMO-6182 is designed for PICMG 1.0/1.3 with 6-slot backplane that is 4U full size industrial node chassis built with one 5.25” HDD driver space for CD/DVD-ROM, one internal 3.5” HDD driver bays and replaceable air filter for easy maintenance. AREMO-6182 equips two USB interface on front panel, and also high wattage 1U form factor PSU. The compact size feature of AREMO-6182 is suitable for Industrial and Engineering applications.

  • One external 5.25” and one 3.5” internal HDD drive bay
  • One replaceable air filter for easy cleaning
  • Can be vertically or horizontally mounted, easy to fit into space limited environment
  • One 12cm ball-bearing cooling fan for better ventilation
  • The fan filter panel can be installed in different directions
  • Two adjustable positions for hold-down card retainers provide better protection from vibration
  • Wall-mounting bracket equipped
  • Both 6-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes

Construction Heavy-duty steel
Drive Bay External: 1x 5.25”
Internal: 2x 3.5” HDD
Card Retainer Two locations for one card retainer
Air Filter One replaceable air filter at the front door
Cooling Fan One 12cm ball-bearing fan
Indicator 1x Power On/Off, 1x HDD
Switch 1x Power On/Off, 1x System reset
Speaker One speaker
Connector 2x USB ports on the front panel
Standard Color Black, Silver
Dimension 219(W) x 448(D) x 160(H) mm; 8.6”(W) x 17.6”(D) x 6.3”(H)
Weight Net: 6.5 kg (14.3 lb); Gross: 8.0 kg (17.6 lb)
Backplane PBP-06P4: 6-slot [PCIe (1), PCI (4), PCI (0)] PICMG 1.0 backplane
PBP-06P3: 6-slot [PCIe (2), PCI (3), PCI (0)] PICMG 1.0 backplane
PBP-06P2: 6-slot [PCIe (3), PCI (2), PCI (0)] PICMG 1.0 backplane
Maximum output 350W active PFC
Output Voltage & Current +5V@18A; +12V1@16A; +12V2@16A; +3.3V@16A; -12V@0.3A, -5V@0.3A, +5Vsb@2.5A
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63Hz
Input Current 6A@115V, 3A@230V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV, CE, FCC, CB
Temperature/Humidity Operating: 0°C ~ 50°C, 5% ~ 90%RH
Storage: -20°C ~ 80°C, 5% ~ 95%RH
Dimension (WxDxH) 190x100x40.5 mm; 7.5”x3.9”x1.6”
Operating Temperature 0°C ~ 55°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration

Ordering Guide

6-slot full-size industrial black node chassis adapted with 6-slot PICMG backplane

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon® is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
